材质 石英
品牌 东精大
规格 11.5mm*5.0mm*3.5mm
0756-8818565
product details

下载图标.png规格书下载 Specification download‍下载图标.png

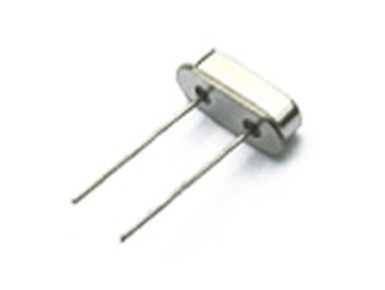

产品类型 PRODUCT TYPEHC-49S

特征 FEATURES

具备最高的品质因子与不同温度变化下的频率高稳定度;

规格尺寸(11.5*5.0*3.5mm typ);

频率范围(3.2M-90M);

采用金属外壳电阻焊接封装,具有恶劣环境下的高稳定性能;

无铅化符合AEC-Q200标准。

It has the highest quality factor and high frequency stability under different temperature changes;

Miniaturized and thin type (11.5 * 5.0 * 3.5mm typ);

Frequency range (3.2M-90M);

Use a metal shell resistance welding assembly, high stability performance with harsh environments;

Lead-free conforms to AEC-Q200 standard.

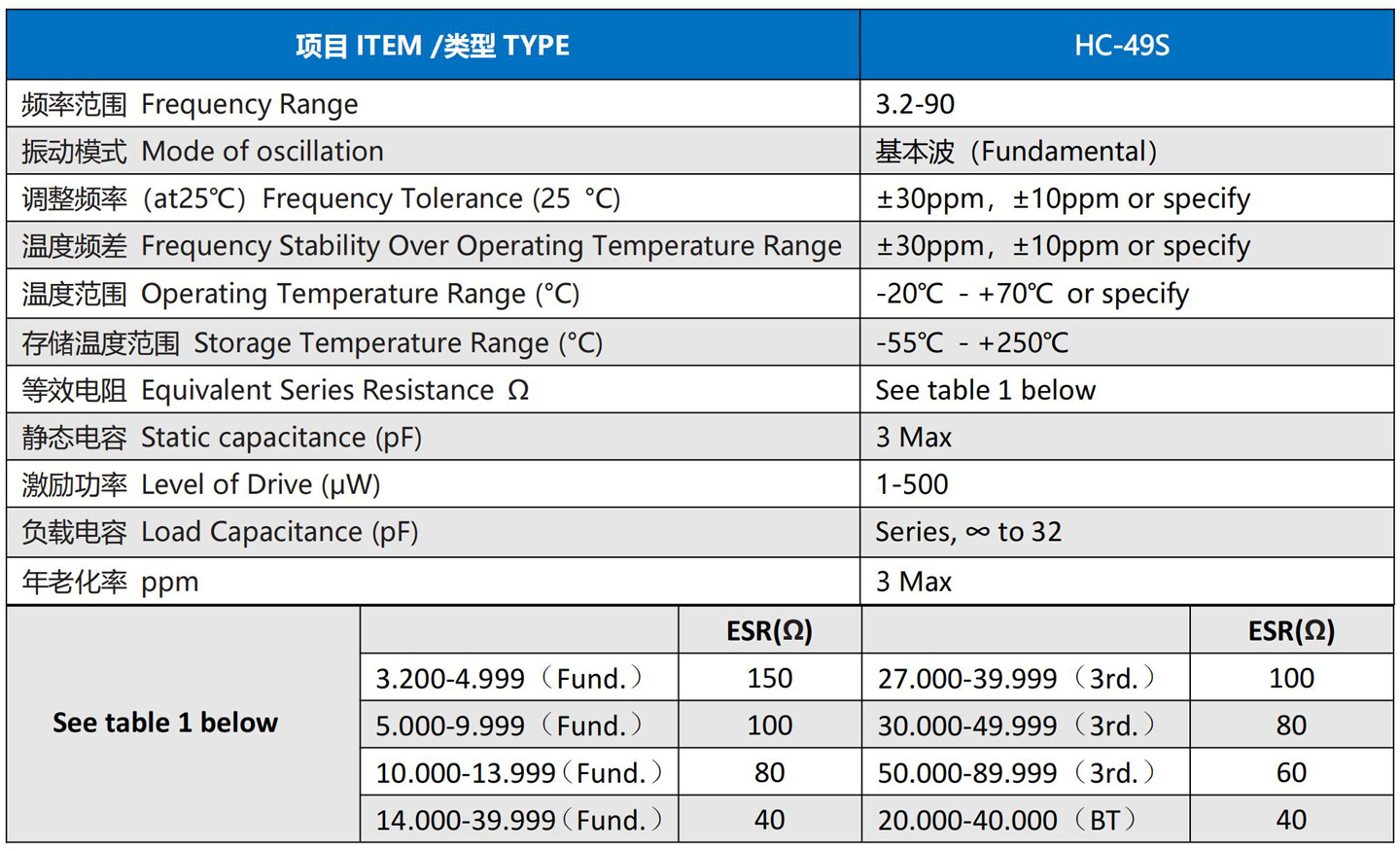

典型规格TYPICAL SPECIFICATIONS

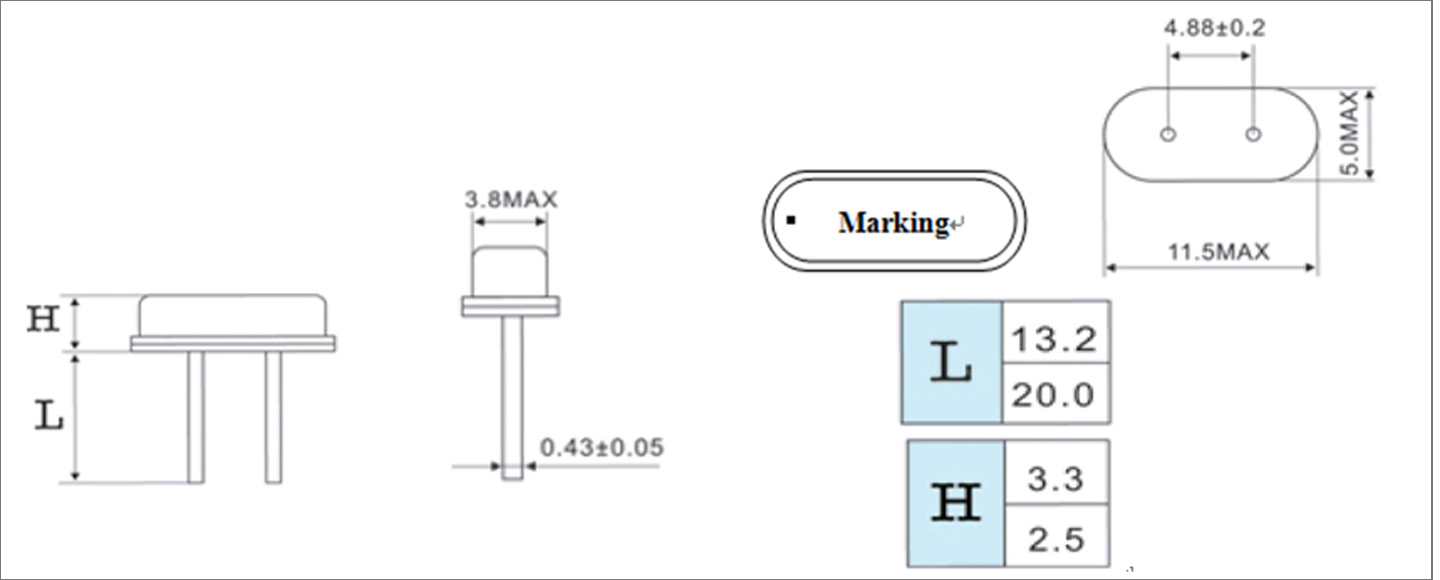

外型尺寸 Outline Dimensions (Unit:mm)
