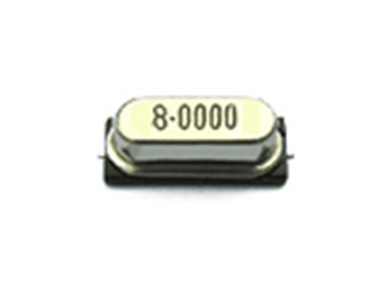

HC-49SMD

‍‍ ‍规格书下载 Specification download‍：‍

产品类型 PRODUCT TYPE：HC-49SMD

特征 FEATURES

具备最高的品质因子与不同温度变化下的频率高稳定度;

规格尺寸（11.4*4.7*4.2mm typ）;

频率范围（3.2M-90M）;

采用金属外壳电阻焊接封装，具有恶劣环境下的高稳定性能;

无铅化符合AEC-Q200标准。

It has the highest quality factor and high frequency stability under different temperature changes;

Miniaturized and thin type (11.4*4.7*4.2mm typ);

Frequency range (3.2M-90M);

Use a metal shell resistance welding assembly, high stability performance with harsh environments;

Lead-free conforms to AEC-Q200 standard.

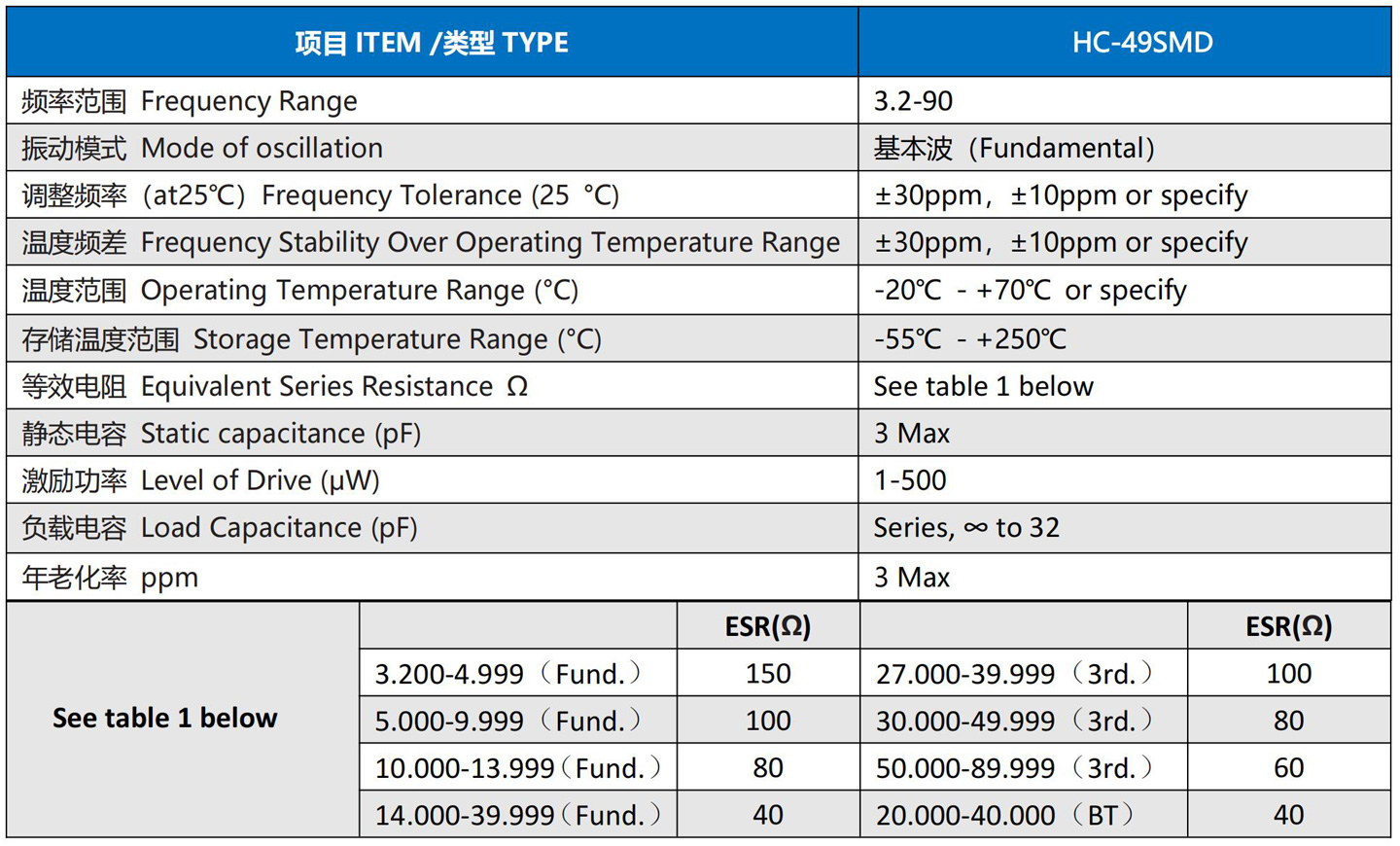

典型规格TYPICAL SPECIFICATIONS

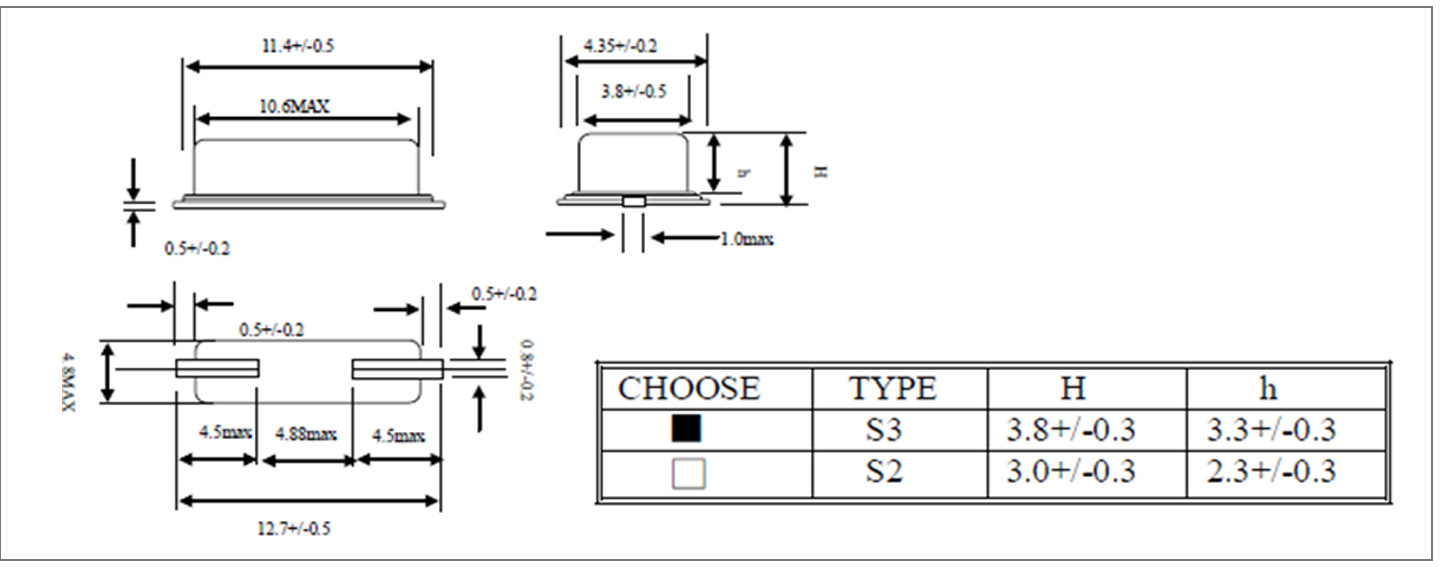

外型尺寸 Outline Dimensions (Unit:mm)
